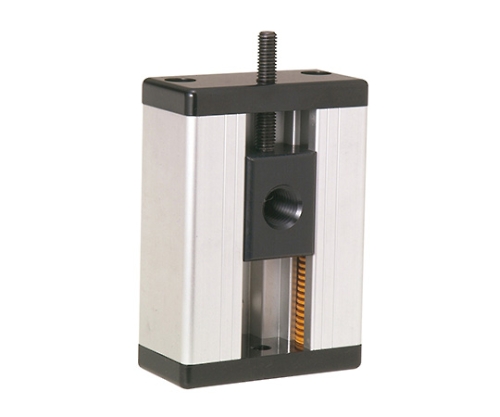

61-4222-60 ［Discontinued］Auto Slide Tightener HAST8-30
Features
- The compression spring automatically adjusts the looseness during operation.
- The stroke is large and the tension is strong.
- You can also change the pressure by replacing the spring.
- It works reliably no matter what direction it is set.

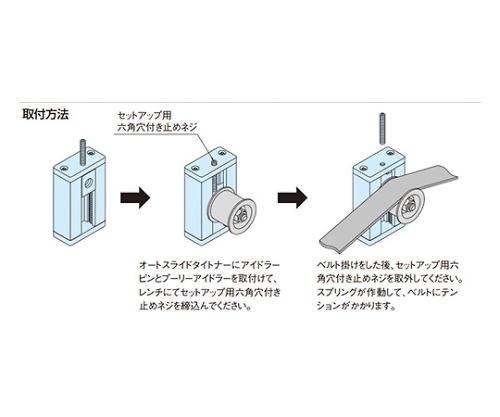

- Tension can be done very easily.
- Body Material: Aluminum Alloy (A6063 S)
- Body Treatment: Alumite Surface Treatment
- Slide Block Material: Ultra High Molecular Weight Polyethylene (UHMWPE)
- Slide Block Color: Black
- Plate Material: Aluminum Alloy (A6063 S)
- Plate Treatment: Black Cation Coating
- Spring Material: SUP10
- Spring Color: Yellow
Spec
- Maximum tension (N): 420

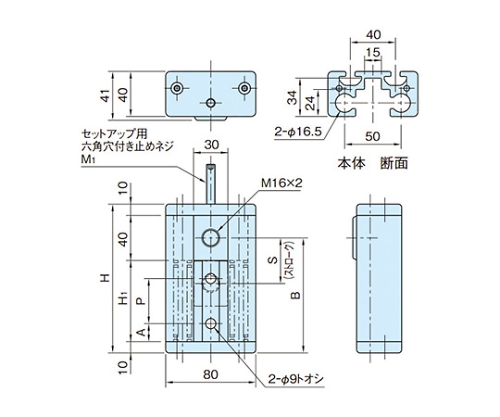

- Dimensions S (mm) : 25.5
- Dimensions B (mm) : 83
- Dimensions H (mm) : 113
- Dimensions P (mm) : 30
- Dimensions A (mm) : 11.5
- Dimensions H1 (mm) : 53
- Dimensions M1 (mm): M8 x 1.25 -45 L
- Mass (g): 557
- Usable Spring Free Length (mm): 55
- outer diameter (mm) : 16
- inner diameter (mm): 8
- spring constant (N/mm): 7.6
- Manufacturer's Model Number: HAST8 -30
| Order No. | 61-4222-60 | |
|---|---|---|
| Model No. | HAST8-30 | |
| JAN Code | 4995889101695 | |
| Standard price |
JPY: 17,000
USD: 105.77
Excange rate 1USD= 160.72JPY
Valid price in Japan |
|
| Quantity | 1piece | |
|
||
| Stock in Japan | - | |
